Black vs Green Silicon Carbide: Key Differences, Applications, and Selection Guide

Quick Answer

The main difference between black silicon carbide and green silicon carbide lies in purity, crystal shape, and application. Black SiC (97–99% purity) is tougher, more impact-resistant, and mainly used for grinding wheels, blasting, and refractory materials. Green SiC (99–99.9% purity) is sharper, more friable, and preferred for precision lapping, polishing, and semiconductor applications. Choosing between them depends on hardness requirements, contamination limits, and cost–performance balance.

Table of Contents

• 1. Overview of Silicon Carbide (SiC)
• 2. Black vs Green Silicon Carbide: Composition and Properties
• 3. Manufacturing Process and Raw Materials
• 4. Mechanical and Chemical Properties Comparison
• 5. Typical Applications by Industry
• 6. How to Choose Between Black and Green SiC
• 7. Quality Standards and Particle Classification
• 8. Price and Cost Performance
• 9. FAQ

1. Overview of Silicon Carbide (SiC)

Silicon carbide (SiC) is a hard, covalently bonded compound of silicon and carbon. It exhibits exceptional hardness (Mohs 9.3), high thermal conductivity, and strong chemical resistance. These attributes make it a key industrial material across the abrasives, refractories, and semiconductor sectors. SiC exists mainly in two commercial forms—black and green—produced under different purification conditions but from the same base raw materials.

Although both variants share a similar crystal structure (α-SiC, hexagonal or rhombohedral), their performance differs depending on impurities, morphology, and sharpness. Buyers typically select between black and green grades based on target use—such as heavy grinding versus precision polishing.

2. Black vs Green Silicon Carbide: Composition and Properties

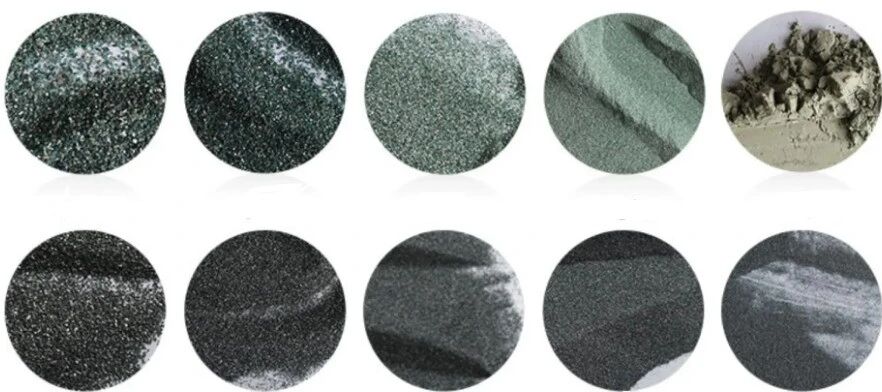

The color difference between black and green SiC reflects their purity and crystalline perfection. Below is a general comparison table used by most industrial exporters:

3. Manufacturing Process and Raw Materials

Both black and green SiC are produced by electrofusing silica sand (SiO₂) and carbon materials (typically petroleum coke) in an electric resistance furnace at 2000–2500 °C. The main distinction lies in the refining conditions and additives:

• Black SiC: Fused from quartz sand and petroleum coke without extra refining agents. The resulting crystals retain minor impurities (Fe, Al, SiO₂) that slightly darken the color. It yields larger, tougher grains ideal for mechanical grinding.
• Green SiC: Produced with higher-purity silica and low-sodium petroleum coke, sometimes with added salt as flux. The process yields purer, sharper, and more friable crystals with bright green transparency.

After cooling, both types undergo crushing, shaping, magnetic separation, acid washing, classification (by FEPA, JIS, or micron standard), and drying before export. Reputable exporters document every stage through batch COA and TDS reports.

4. Mechanical and Chemical Properties Comparison

Mechanical and thermal characteristics drive the performance difference between the two grades. Green SiC’s higher purity means fewer lattice defects, giving it sharper edges but less toughness. Black SiC’s residual metallic and oxygen impurities slightly lower hardness but improve fracture toughness and impact resistance.

• Hardness: Both rank near diamond, but green SiC cuts cleaner due to sharper crystal edges.
• Toughness: Black SiC withstands higher mechanical shock and pressure loads.
• Thermal Shock Resistance: Black SiC performs better under rapid heating and cooling (e.g., in refractories).
• Oxidation Resistance: Green SiC resists oxidation longer in high-purity applications.

In abrasive tool manufacturing, the right combination of hardness and friability is critical—black SiC for material removal, green SiC for surface finish.

5. Typical Applications by Industry

Both types serve overlapping but distinct markets:

• Black Silicon Carbide: Grinding wheels, abrasive blasting media, pressure nozzles, refractory bricks, kiln furniture, metallurgical deoxidizers, and ceramic armor composites.
• Green Silicon Carbide: Precision lapping and polishing of optics, semiconductors, LED wafers, glass, and ceramics; coating materials for wear-resistant surfaces; high-purity ceramic parts.

For refractory use, black SiC improves thermal conductivity and erosion resistance, while green SiC is applied in high-purity ceramics where contamination must be minimal.

6. How to Choose Between Black and Green SiC

Buyers should evaluate five major factors:

1. Application Purpose: Rough grinding → Black; fine polishing → Green.
2. Required Purity: If Fe or Si contamination matters (e.g., semiconductors), use green.
3. Budget: Black SiC is 15–30% cheaper per ton than green.
4. Tool or Furnace Design: Green SiC breaks more easily, enabling self-sharpening but unsuitable for high-pressure bonds.
5. Availability: Black SiC is produced in larger volumes and has broader size ranges (F8–F2000); green SiC often limited to finer microgrits.

For exporters and distributors, keeping both lines allows coverage of general abrasive and precision markets simultaneously.

7. Quality Standards and Particle Classification

International grading follows FEPA (Europe), JIS (Japan), and ANSI (US) standards. Exporters often provide equivalence tables for conversion:

• FEPA F-grits: F12–F220 for bonded abrasives, F230–F2000 for microgrits.
• JIS standards: Used in Asia; correspond roughly to FEPA but with narrower tolerances.
• Micron grades: Measured by laser diffraction, e.g., 1–3 μm, 3–6 μm, 6–12 μm.

Both black and green powders require strict control of D10/D50/D90 and magnetic residue (< 200 ppm for fine grades). Cleanliness and moisture stability directly affect performance and shelf life.

8. Price and Cost Performance

Because green SiC demands higher-purity raw materials and longer refining cycles, its production cost is 20–40% higher. However, its finer sharpness often results in longer tool life or higher yield in polishing operations—reducing cost per finished piece. The typical global market ratio (as of 2025) is:

• Black SiC F-grits: USD 800–1,000 / t FOB China
• Green SiC Microgrits: USD 1,200–1,600 / t FOB China

Actual pricing depends on grain size, purity, washing, and packing requirements. Importers should request COA and TDS to confirm chemical and PSD data before contracting.

9. FAQ

Q1: Why are black and green silicon carbide different in color?

The color difference results from impurity content and crystal perfection. Black SiC contains trace Fe and SiO₂, giving it a dark metallic tone, while green SiC is purer, forming transparent greenish crystals.

Q2: Which type of SiC is harder?

Green SiC is slightly harder and sharper (Mohs ≈ 9.4), suitable for fine finishing. Black SiC (Mohs ≈ 9.2) is tougher and better for heavy grinding.

Q3: Can black and green SiC be mixed?

Yes, some bonded abrasives and refractory formulations blend both types to balance cutting ability and cost. However, blending should be controlled to maintain consistency in purity and particle strength.

Q4: What are typical purity levels for export grades?

Black SiC: 97–99% SiC content; Green SiC: 99–99.9%. FEPA/JIS-certified exporters provide full analysis for each lot.

Q5: Is green SiC always better?

Not necessarily. Green SiC’s superior sharpness benefits precision polishing but increases brittleness and cost. For general grinding or refractory applications, black SiC remains the better-value choice.

Q6: Which industries mainly use each type?

Black SiC → abrasives, foundry, refractories; Green SiC → electronics, optical polishing, fine ceramics.

Q7: How should SiC be stored before use?

Keep sealed in dry conditions (< 60% RH), away from moisture and acids. Long exposure can cause surface oxidation, especially for fine powders.

Q8: Can both types be used in semiconductors?

Only green SiC microgrits meet semiconductor purity and contamination limits. Black SiC is not used for wafer processes due to trace metallics.
